打印物料编码

假设需要制作一张物品标签，标签中包含编号、客户、规格、库存、存户位置都来自于数据表。

定义数据结构

字段名	标识符	类型
编号	no	单行文本
客户	customerRel	关联记录
规格	spec	单行文本
库存	quantity	证书
存户位置	storageLocation	单行文本

示例数据

{
  "id": "mih4am4rz1laz",
  "storageLocation": "L2-01-01-01",
  "quantity": 50,
  "customerRel_name": "XXX汽车有限公司",
  "customerRel": "34.006",
  "no": "2127380-CD01XXX",
  "spec": "总成件"
}

页面设计

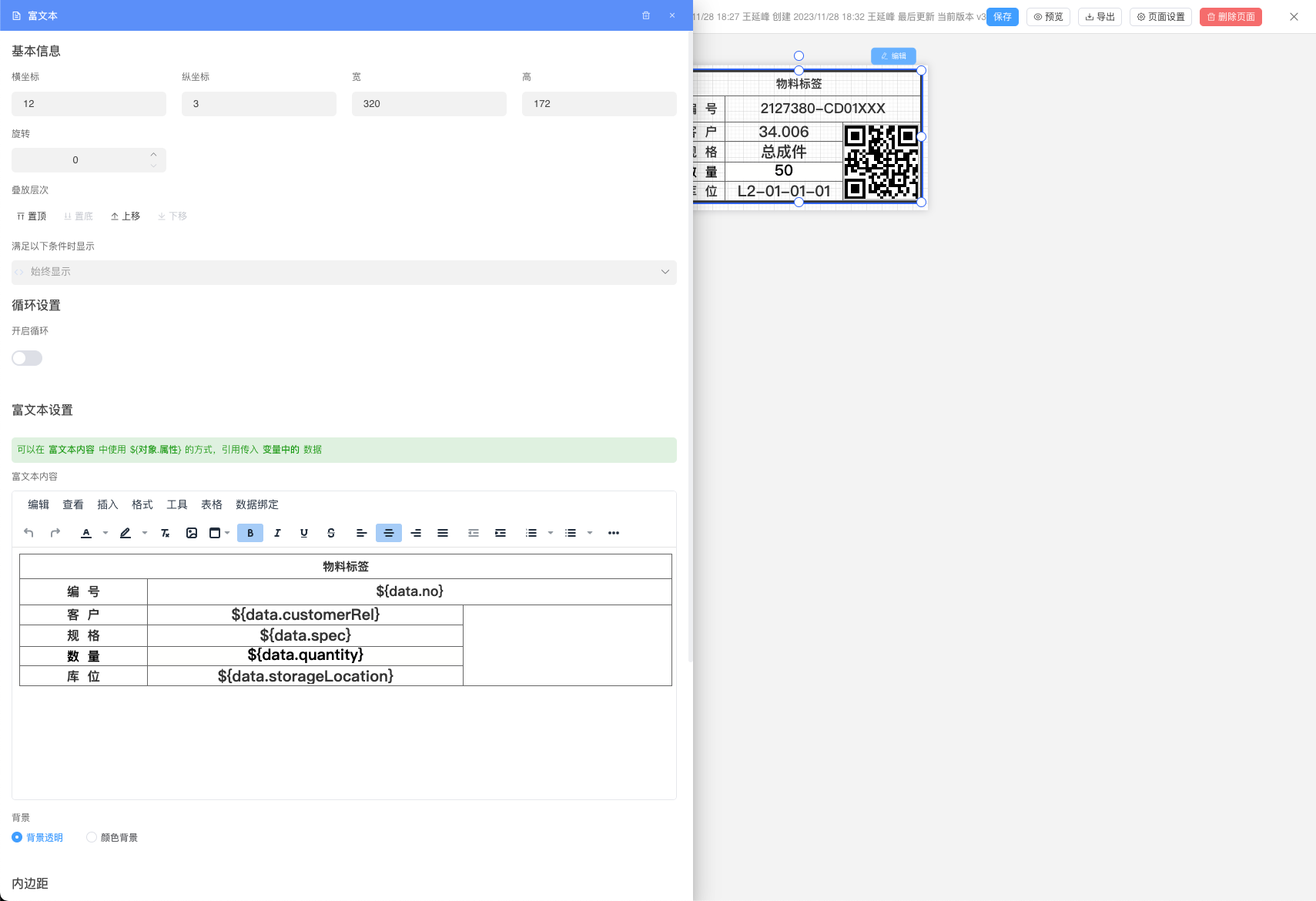

页面设计富文本组件代码

<table style="border-collapse: collapse; width: 100.505%; height: 152.094px; border-width: 1px; border-spacing: 0px; margin-left: auto; margin-right: auto;" border="1" data-id=""><colgroup data-id=""><col style="width: 19.5732%;" data-id=""><col style="width: 48.46%;" data-id=""><col style="width: 31.9554%;"></colgroup>
  <thead>
  <tr style="height: 31.375px; line-height: 1;" data-id="">
    <td style="text-align: center; height: 31.375px; border-width: 1px; padding: 0px;" colspan="3" scope="colgroup" data-id=""><span style="font-family: 黑体;"><strong><span style="font-size: 15px;">物料标签</span></strong></span></td>
  </tr>
  <tr style="height: 19px;">
    <td style="text-align: center; border-width: 1px; height: 19px; padding: 0px;"><span style="font-size: 16px;"><strong><span style="font-family: 黑体;" data-id="">编&nbsp; 号</span></strong></span></td>
    <th style="text-align: left; border-width: 1px; height: 19px; padding: 0px;" colspan="2" scope="colgroup">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id=""><span style="font-family: 黑体; font-size: 18px;"><strong><span data-id="">${data.no}</span></strong></span></div>
    </th>
  </tr>
  <tr style="height: 25.3125px; line-height: 1;" data-id="">
    <td style="text-align: center; height: 25.3125px; border-width: 1px; padding: 0px;" data-id=""><span style="font-size: 16px;"><strong><span style="font-family: 黑体;" data-id="">客&nbsp; 户</span></strong></span></td>
    <th style="text-align: left; height: 25.3125px; border-width: 1px; padding: 0px;" scope="col" data-id="">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id="">
        <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id=""><span style="font-family: 黑体;"><strong><span style="font-size: 20px;" data-id="">${data.customerRel}</span></strong></span></div>
      </div>
    </th>
    <th style="text-align: left; border-width: 1px; padding: 0px; height: 101.719px;" rowspan="4" scope="colgroup">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id=""><span style="font-size: 15px;" data-id="">&nbsp;</span></div>
    </th>
  </tr>
  <tr style="height: 26.4844px; line-height: 1;" data-id="">
    <td style="text-align: center; height: 26.4844px; border-width: 1px; padding: 0px;" data-id=""><span style="font-size: 16px;"><strong><span style="font-family: 黑体;" data-id="">规&nbsp; 格</span></strong></span></td>
    <th style="text-align: left; height: 26.4844px; border-width: 1px; padding: 0px;" scope="col" data-id="">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id=""><span style="font-family: 黑体;"><strong><span style="font-size: 20px;" data-id="">${data.spec}</span></strong></span></div>
    </th>
  </tr>
  <tr style="height: 24.6094px; line-height: 1;" data-id="">
    <td style="text-align: center; height: 24.6094px; border-width: 1px; padding: 0px;" data-id=""><span style="font-size: 16px;"><strong><span style="color: rgb(0, 0, 0); font-family: 黑体;" data-id="">数&nbsp; 量</span></strong></span></td>
    <th style="text-align: left; height: 24.6094px; border-width: 1px; padding: 0px;" scope="col" data-id="">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: left;" data-id="">
        <div style="color: #000000; background-color: #fffffe; font-family: Consolas, 'Courier New', monospace; font-weight: normal; font-size: 14px; line-height: 19px; white-space: pre;">
          <div style="text-align: center;"><span style="font-family: 黑体;"><strong><span style="color: rgb(0, 0, 0); font-size: 20px; background-color: rgb(255, 255, 255);">${data.quantity}</span></strong></span></div>
        </div>
      </div>
    </th>
  </tr>
  <tr style="height: 25.3125px; line-height: 1;" data-id="">
    <td style="text-align: center; height: 25.3125px; border-width: 1px; padding: 0px;" data-id=""><span style="font-size: 16px;"><strong><span style="font-family: 黑体;" data-id="">库&nbsp; 位</span></strong></span></td>
    <th style="text-align: left; height: 25.3125px; border-width: 1px; padding: 0px;" scope="col" data-id="">
      <div style="width: 100%; text-overflow: ellipsis; overflow: hidden; white-space: nowrap; word-break: break-all; text-align: center;" data-id=""><span style="font-family: 黑体;"><strong><span style="font-size: 20px;" data-id="">${data.storageLocation}</span></strong></span></div>
    </th>
  </tr>
  </thead>
</table>
